DASAN Networks OLT V8106

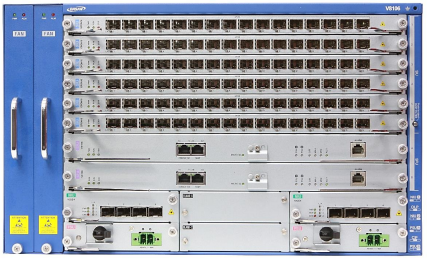

The V8106 is a 6RU-high chassis-based GPON OLT system, consisting of 6 Service Cards, 2 Swiching Fabric Slots and 2 Uplink Slots of 10 SLOTs, which are full-Featured and High-performance FTTx applications.

DASAN Networks V8106 – Chassis OLT

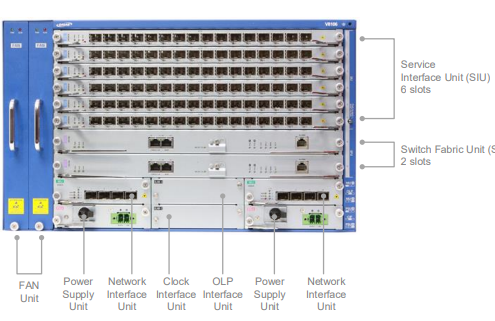

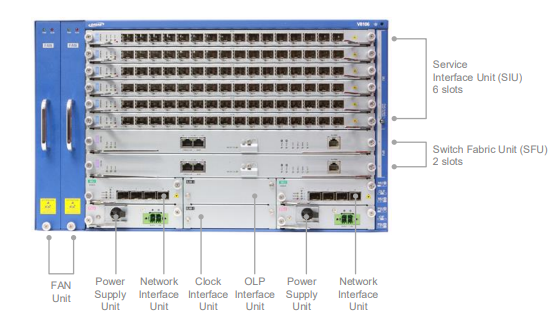

DASAN Networks’ V8106 is a 6RU height chassis based GPON OLT system which is comprised of 10 slots for 6 service modular slots, 2 switching fabric slot and 2 uplink slots for delivering a wide range of full-featured and high-performance over FTTx applications. It is a high-density chassis system that supports up to 6,144 residential and business subscribers with 96 GPON ports(1:64 split ratio).

The most compact type GPON OLT Chassis system as supporting GPON Protection in worldwide. V8106 features high capacity GPON access and 10GbE uplink and line rate performance with a 960Gbps non-blocked switch fabric. Moreover V8106 is ready for XG-PON service, the service line support the fully 8 ports of XG-PON signal as same chassis.

V8106 guarantees equipment-level reliability with full redundancy design concept of SFU/Power/GPON units. The PON technology adds new features and functionality targeted at improving performance and inter-operability, and adds support for new applications, services, and deployment scenarios.

Marketing Contact : info@mdi-solutions.com

Key Features & Advantages :

  • 96 GPON ports per chassis(16 Port per Unit)
  •  Ready for 48 XG-PON ports per chassis(8 Port per Unit)
  • 4 x 10GE/GE Uplink(Selectable) per slot
  • Multi-service chassis for FTTx deployments Full redundancy
  • Support and delivery of various service types
  • VoIP, IP-TV, high-speed internet, mobile, etc.
  • Non-stop forwarding, Non-stop routing features based on distributed architecture
  • Selective service/uplink modular units for flexible network
  • High capacity GPON access and 10GbE uplink and line rate performance
  • Realtime network traffic monitoring and analyzing
  • Common & familiar CLI via console/telnet
  • SNMPv2/v3 with RMON, Alarms
  • L2/L3/L4 classification / Priority management

V8106 Specification :

Flash Memory : 8MB(Boot)+128MB(NOS)
SDRAM : 4GB(DDR3)
Service Port :
6 Slot for SIU(Service Interface Unit)
– SIU_GPON16 : 16 GPON (SFP, SC/PC)
– SIU_GPON16T* : 16 GPON (SFP, SC/PC)
– SIU_XGPON8* : 8 XG-PON1 (XFP,SC/PC)
Uplink Port :
2 Slots for NIU(Network Interface Unit)
– NIU_10GE4 : 4 10GE Ports(SFP+) or 4 GE Port(SFP)Management
Management Interface :
– 1 Port RS-232 for Console(RJ45)
– 1 Port Tx for MGMT(RJ45)
– 1 Port microSD Interface
MAC Table : 32K(Max.288K)
Routing Table : 16K(IPv4)/8K(IPv6), Max120K(IPv4)/60K(IPv6)
VLAN : 4K
Switching Capacity : 960Gbps
Operating Temp. 0~50°C
Operating
Humidity 20~80% (non-condensing)
Power Voltage
Input : -48VDC (redundancy)
Dimensions (W x H x D) : 482.6 x 280 x 266.4mm

Datasheet :

DASAN Networks V8106 OLT Download
