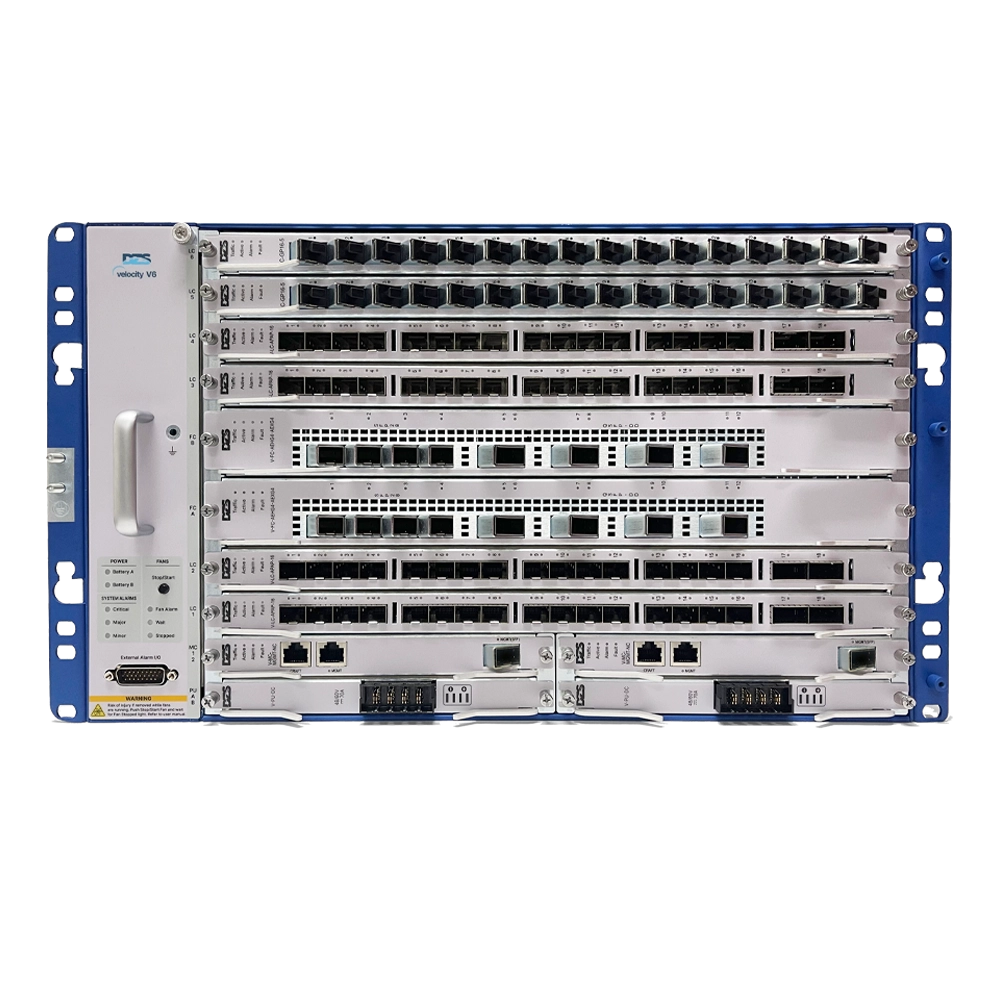

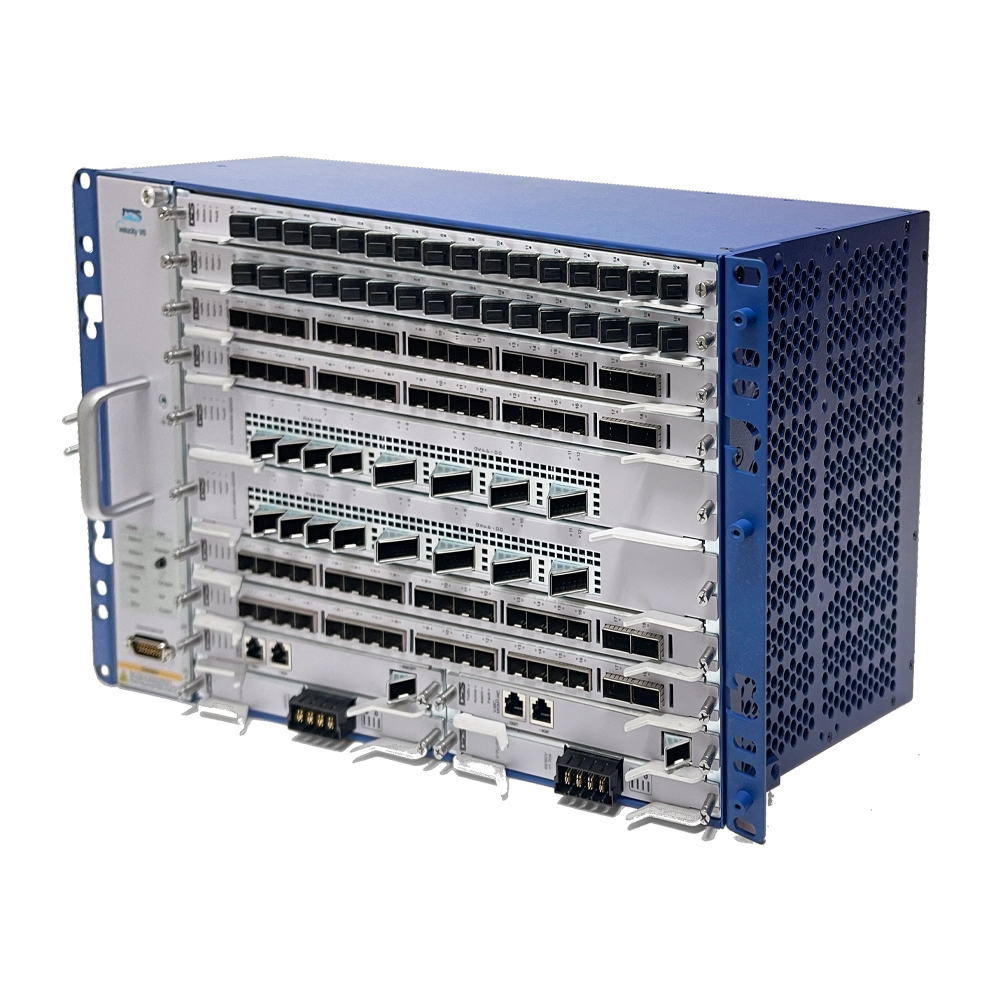

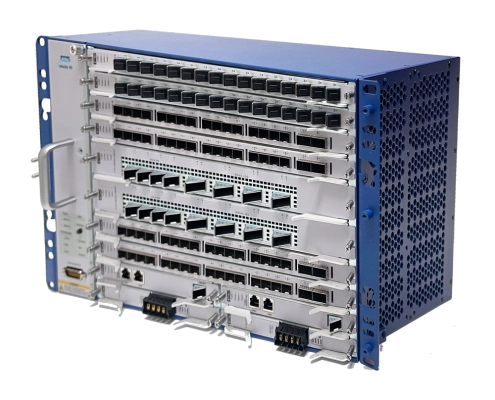

DZS Velocity V6 OLT System

Industry’s Highest Performance 6-Slot System for Hyper-Fast, Low Latency, Software Defined Access Networks.

DZS Velocity V6 system to be prepared for a 50/100G future

The V6 OLT system marks a significant expansion to the DZS Velocity portfolio — a high-density fiber-based service delivery platform to costeffectively deliver 10G Broadband services today with architectural headroom to provide non-blocking support for 50Gbps PON and beyond. It can be deployed as a Chassis OLT or as a Disaggregated OLT in SDN Access Networks.

It utilizes the DZS XCelerate™ architecture for service cards and fabric cards for maximum flexibility and scalability. The V6 supports GPON, XGS-PON, 1G, and 10Gbps Ethernet access for residential triple play and high-bandwidth business as well as mobile xHaul transport services. The system chassis is designed to support any service cards and fabric cards interchangeably with any other Velocity family OLTs

Marketing Contact : info@mdi-solutions.com

Key Features & Advantages :

  • Ready for High-Density Edge Deployment: 6RU environmentally hardened with 6 slots
  • Extraordinary Performance: Scales to 800 Gbps of non-blocking switching capacity per slot
  • Industry-Leading Capacity: Serves over 24,000 subscribers in 6RU form factor
  • Deploy 10G Today and 50/100G Tomorrow: First system to provide in-place upgrade path from XGS PON to future 50/100G PON
  • Meta-Verse Optimized: Architected to meet high symmetrical bandwidth and low latency requirements
  • Open Standards-based and SDN-enabled Software: Aligned with global standards and complemented by award-winning DZS Cloud software
  • Best of Both Worlds: Support for centralized and disaggregated deployment models, including benefits of chassis-based disaggregation
  • Expansive, Interoperable ONT and Gateway Portfolio: Supports a full array of ONTs and gateways with cutting-edge WiFi and proven 3rd party interoperability

V6 Specification :

V6 Interfaces :
+ 6-access multi-service subscriber slots
+ 2-Fabric Card/Network facing slots.
+ 2-Management Card slots

Power Interface :
+ Operating voltage: -42V to -65V DC
+ Dual (A / B redundant) power feeds

Standards Support :
+ ETSI EN 300_119-3_v2.2.2_09-2009

Regulatory Compliance :
+ Safety
+ EN 62368-1
+ UL 62368-1
+ EMC Emissions / Immunity
+ FCC Part 15 Class A
+ EN 55022 Class A
+ CES-003 Class A
+ EN 300 386

Datasheet :

DZS V6 OLT Download
