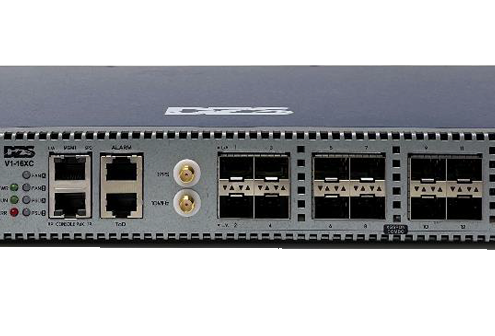

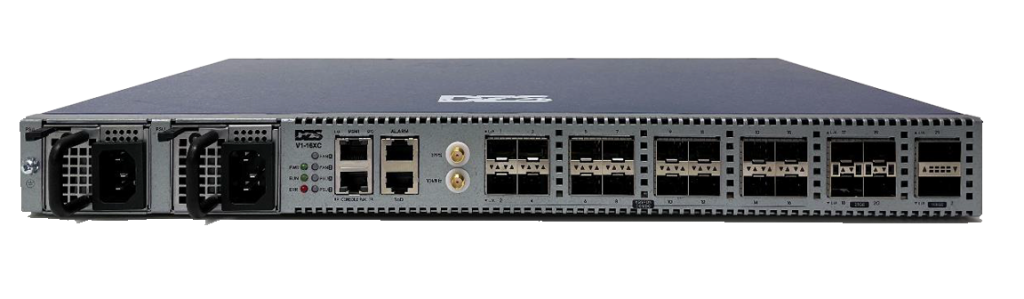

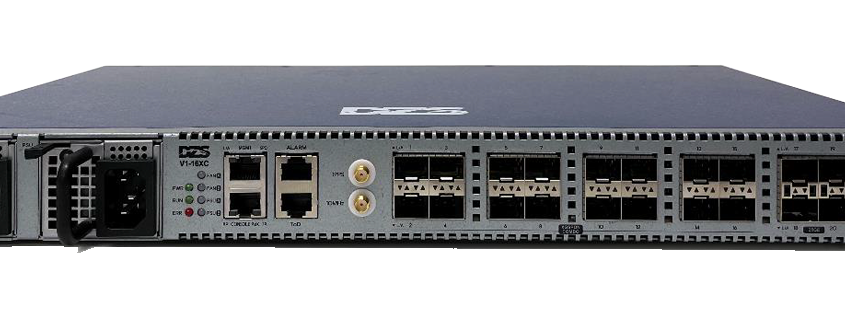

DZS Velocity V1-16XC OLT System
A new generation XCelerate™ OLT with the flexibility to choose GPON, XGS-PON or GPON+XGS-PON (Combo) for cost-effective 10Gig services.
Overview
DZS Velocity V1-16XC New generation OLT for optical broadband service
The XGS-PON technology adds new features and functionality targeted at improving performance and interoperability, and adds support for new applications, services, and deployment scenarios. Among these changes are improvements in data rate and reach performance, diagnostics, and stand-by mode, to name a few.
The V1-16XC utilizes a point-to-multipoint Optical Distribution Network (ODN) and the XGS-PON technology with 10G Symmetric bandwidth to enable cost-effective, higher bandwidth, higher value FTTx services. Service providers can add new 10Gig PON based services alongside GPON to offer choice and keep pace with growing bandwidth demands. Cost effective 10Gig offers an opportunity for revenue growth in business and mobile xHaul applications beyond traditional residential applications with a common fiber network.
Marketing Contact : info@mdi-solutions.com
Key Features
Key Features & Advantages :
- Compact 1U low profile, high density
- 900Gbps switching capacity
- 16-port XGS-PON/GPON combo SFP+ interfaces
- Fixed 4-port 25GE SFP 28 and 2-port 100G QSFP28 optical interfaces
- XGS-PON ODN class N1/N2 compliant with ITU-T G.9807.1
- ONU bundle rate-limit in OLT
- Traffic management provides QoS, traffic shaping
- Transparent LAN services
- IPTV multicast, IGMPv2 and IGMPv3 services
- PPPoE Intermediate Agent
Specifications
V1-16XC Specification :
Capacity
+ Max. 900Gbps switching capacity based on I/O full duplex
+ Main switching block in Base board with fixed I/O Interface
GPON Capabilities
+ Support ITU-T G.984.4 ONT Management & Control Interface (OMCI)
+ Remote ONT/ONU management
+ Automatic ONT ranging
+ GPON OLT Class B+ compliant with ITU-T G.984.2
+ GPON OLT Class C+ compliant with ITU-T G.984.2
+ Full-duplex operation
+ 2.488Gbps downstream and 1.244Gbps upstream applications
+ 2.488Gbps continuous-mode transmitter(1.49um-DFB) with automatic output power control
+ BER: under 10-10
+ Receiving Wavelength: 1260 ~ 1360nm (Typ: 1310nm)
+ Input sensitivity: Max -28dBm (Measured with a PRBS 223-1 pattern)
+ Input Saturation Power(Overload): -8dBm (min)
+ Transmitter wavelength: 1480 ~ 1500nm (Typ: 1490nm)
+ Mean launched power: +1.5 ~
+4.5dBm (End of life)
+ Spectral width (-20dB): 1nm (max)
+ Receiving Wavelength: 1260 ~ 1360nm (Typ: 1310nm)
XGS-PON Capabilities
+ Support ITU-T G.9807.1 Compliant
+ Full-duplex operation
+ XGS-PON ODN Class N1 compliant with ITU-T G.9807.1
+ 9.953Gbps downstream and 9.953/2.488Gbps upstream applications
+ Support DDM (Digital Diagnostics Monitoring)
+ Transmission distance: 20km with single-mode fiber
+ Laser type: laser diode class 1 (defined in IEC 60825-1)
