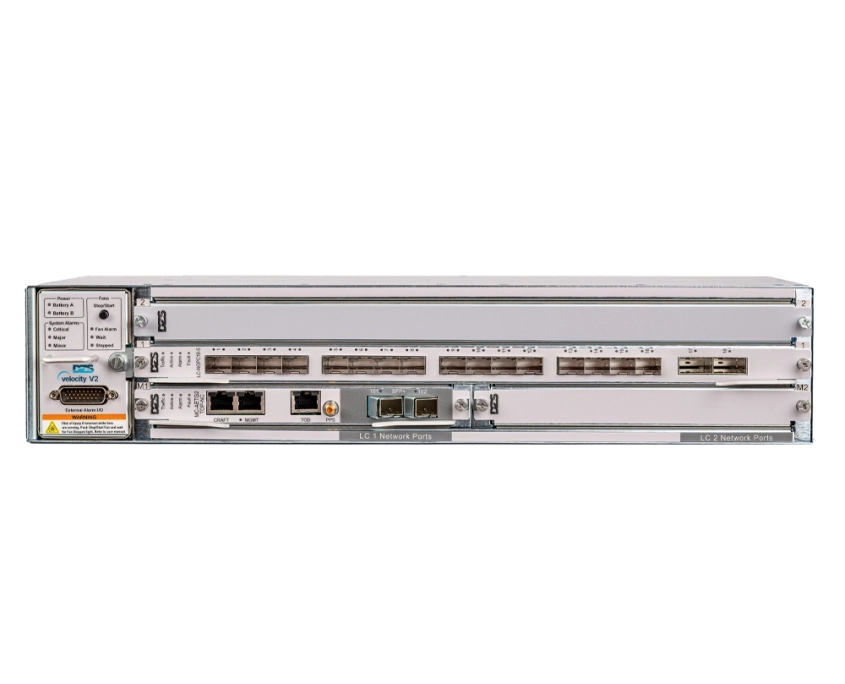

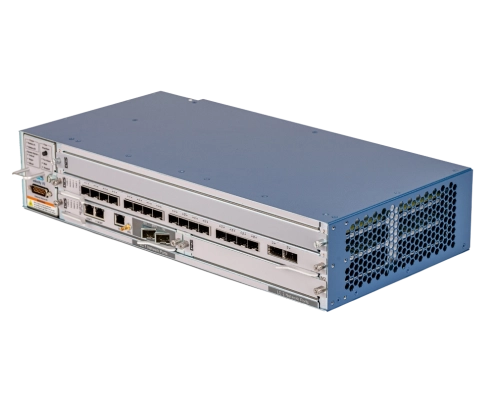

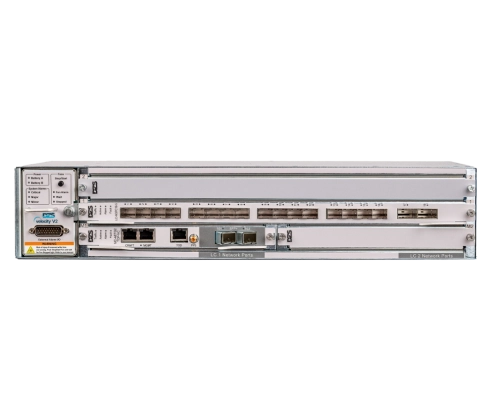

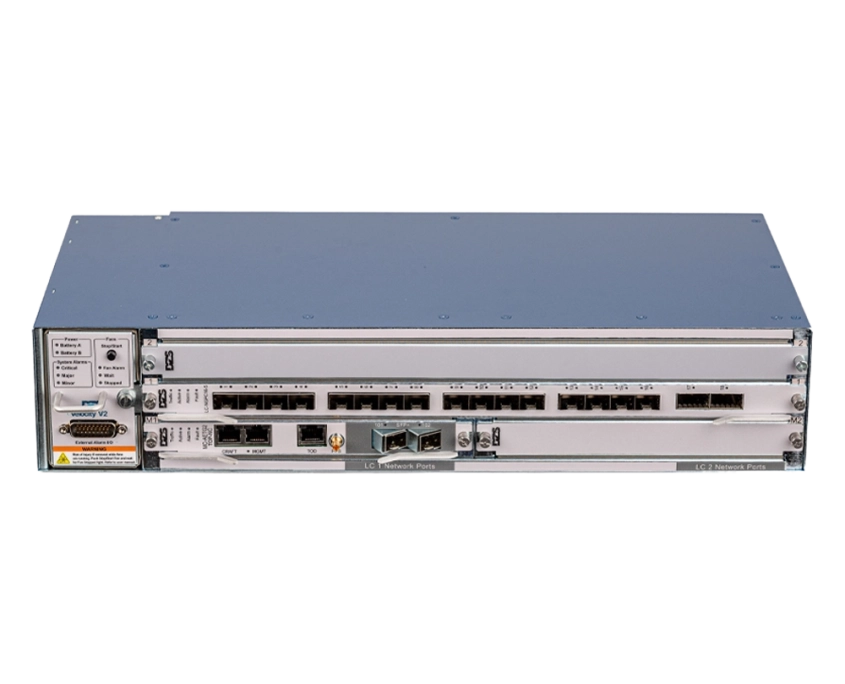

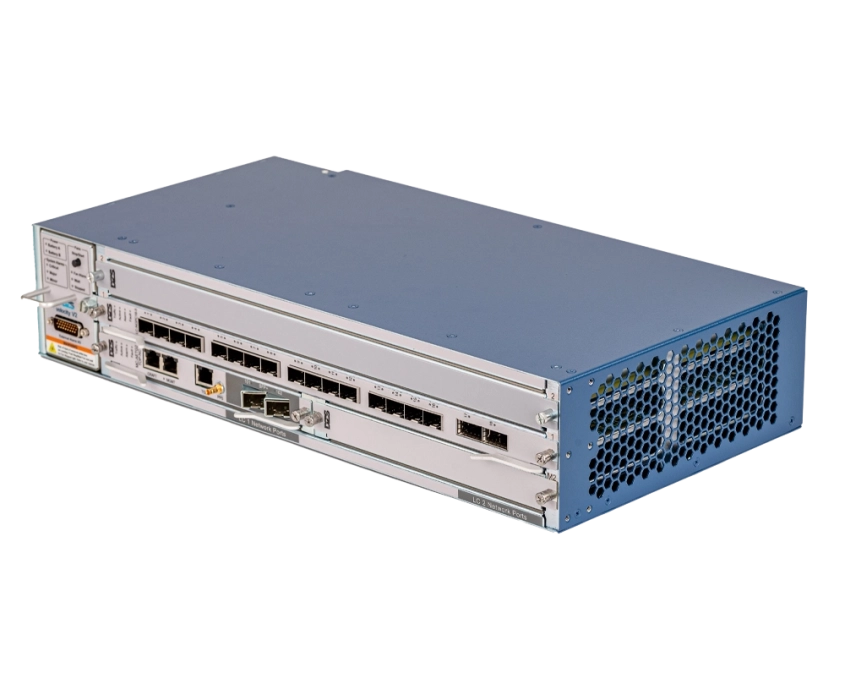

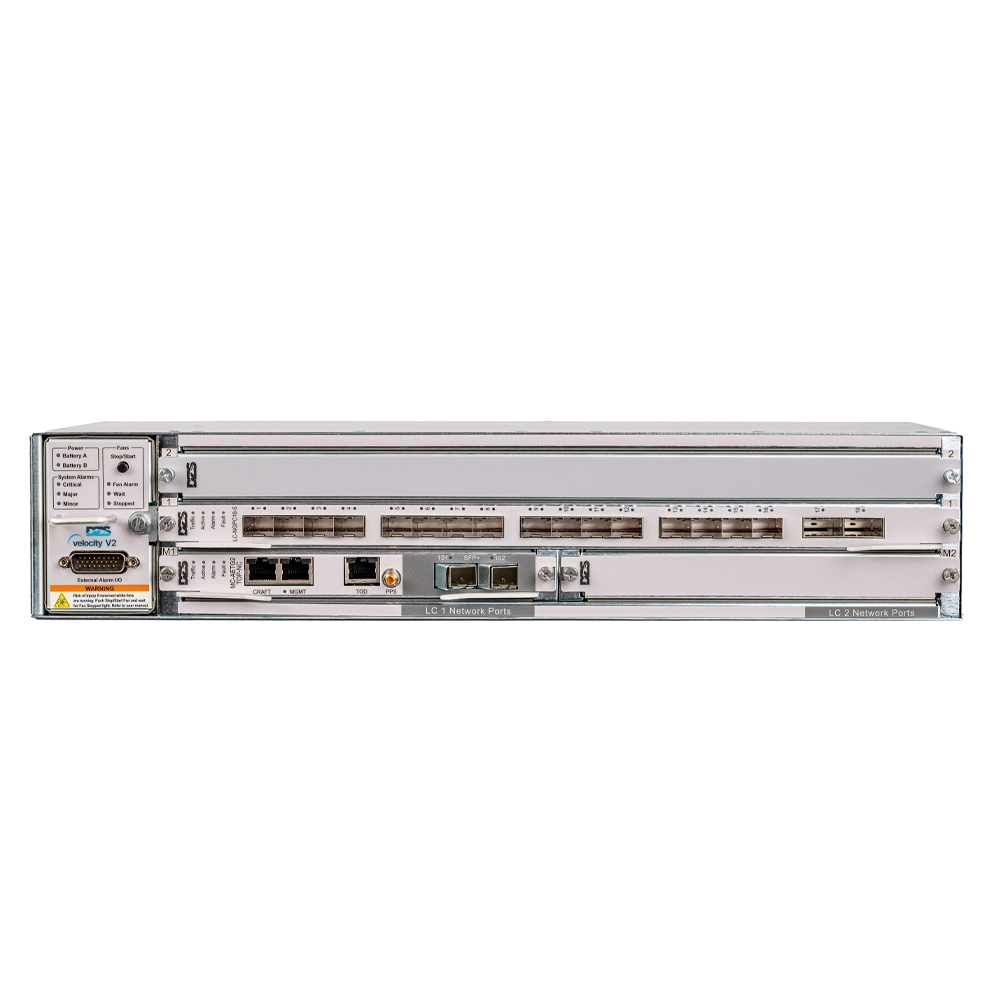

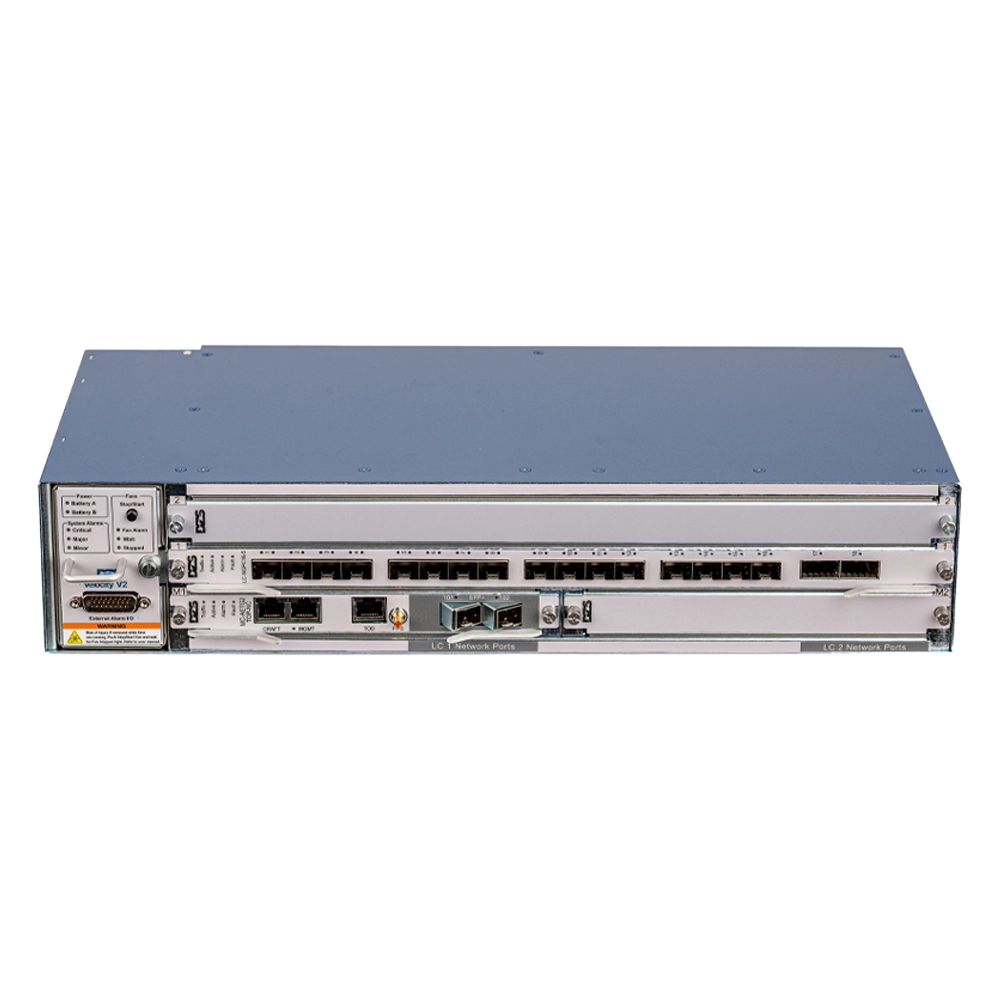

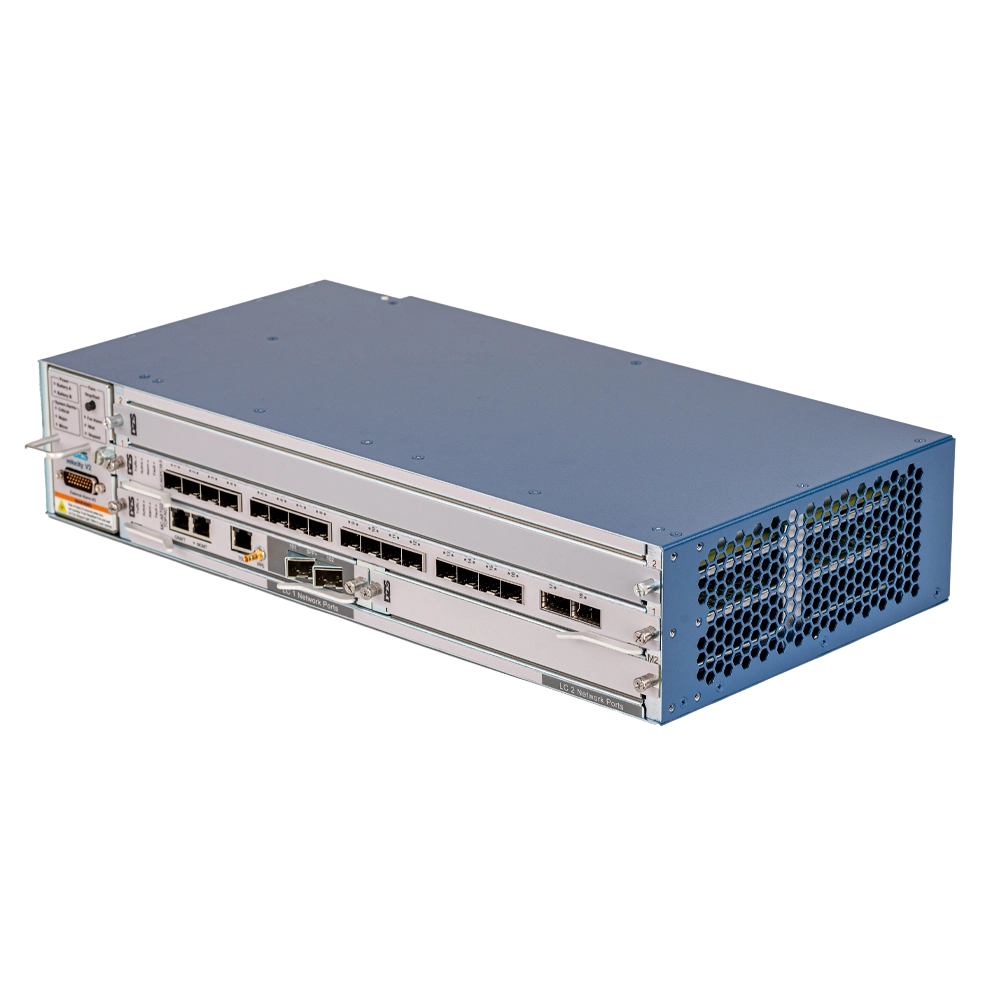

DZS Velocity V2 OLT System
The Velocity V2 OLT offers a high-capacity fiber-based service platform to cost-effectively deliver 10G Broadband services today and scale up for future growth.
Overview
DZS Velocity V2 system Compact high-capacity solution for Hyper-Fast SDN Access Networks.
The Velocity V2 OLT offers a high-capacity fiber-based service platform to cost-effectively deliver 10G Broadband services today and scale up for future growth. It can be deployed as a Chassis OLT or as a Disaggregated OLT when equipped with any XCelerateTM service cards for maximum flexibility and scalability.
It supports GPON, XGS-PON, 1G, and 10Gb/s Active Ethernet access for residential triple play and high-bandwidth business as well as mobile xHaul transport services. The chassis is designed to support any service cards interchangeably with any other Velocity family OLTs.
Marketing Contact : info@mdi-solutions.com
Key Features
Key Features & Advantages :
- Any services – Residential or Business Broadband, and Mobile xHaul
- GPON, XGS-PON, GPON+XGS-PONm(Combo), 1GigE, and 10GigE Active Ethernet fiber access
- Meets ETSI EN 300 standard
- Industrial temperature
- sdNOSTM operating system software for modular software and cloud-based network functions
- Intuitive, comprehensive management, with CLI, and DZS Cloud Access Edge Domain Orchestrator.
Specifications
V2 Specification :
Velocity V2 Interfaces
+ 2-access multi-service subscriber slots
+ 2-Management/network facing slots.

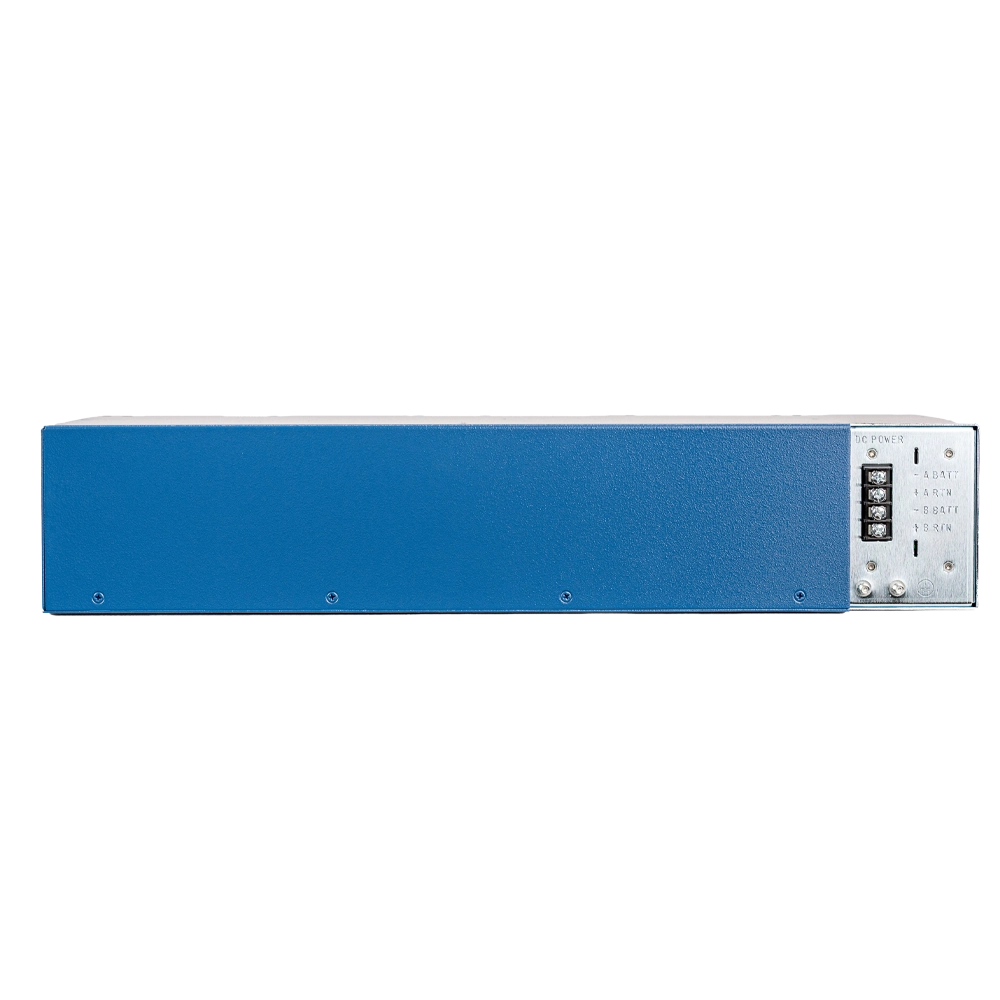

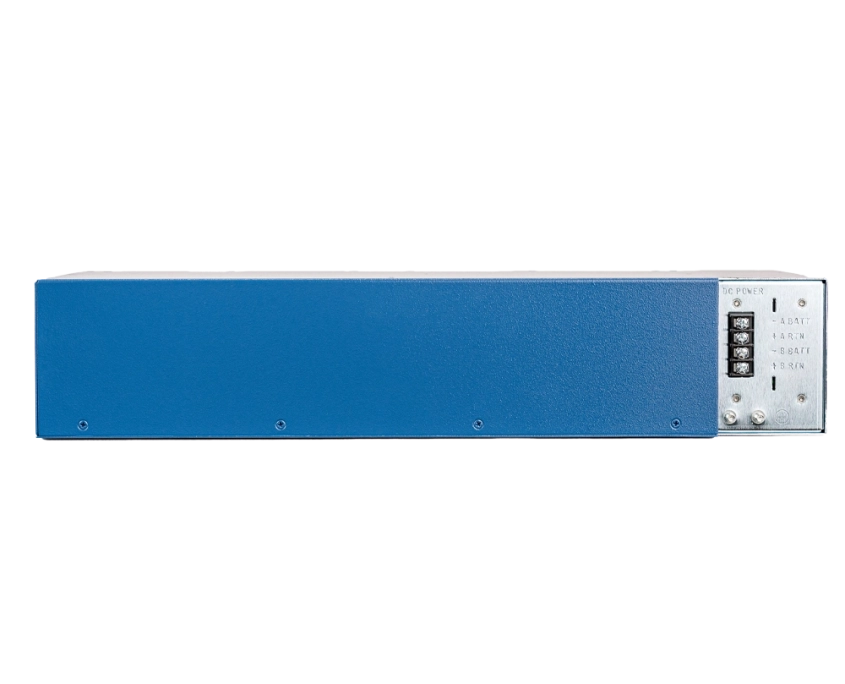

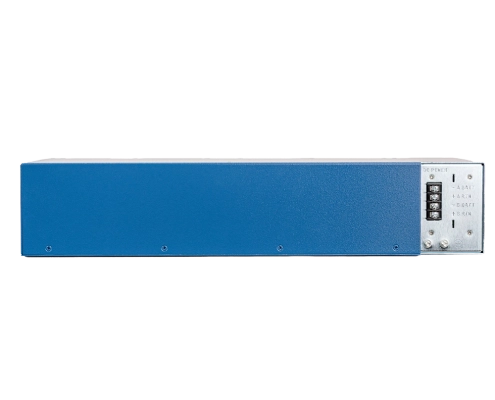

Power Interface
+ Operating voltage: -43.75V to -59.9V DC
+ Dual (A / B redundant) power feeds
Standards Support
+ ETSI EN 300_119-3_v2.2.2_09-2009
Regulatory Compliance
+ Safety
+ EN 62368-1
+ UL 62368-1
+ EMC Emissions / Immunity
+ FCC Part 15 Class A
+ EN 55022 Class A
+ CES-003 Class A
+ EN 300 386
Documentation
Datasheet :
